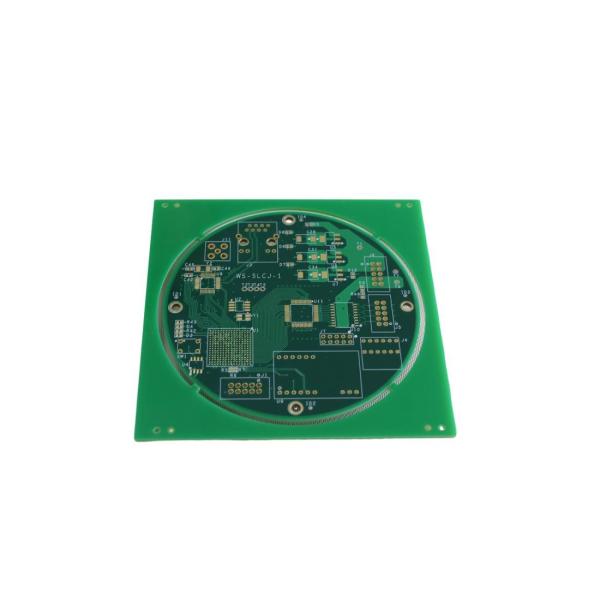

Industrial Control Quick Turn Printed Circuit Boards 600mm*1200mm

Large-Scale Double Side PCB Assembly With Max. Board Size 600mm*1200mm

Product Description:

Prototype PCB Assembly is a double-sided PCB assembly, which is specially designed for industrial control applications. With minimum hole size of 0.2 mm and minimum line width of 0.075mm, it offers superior performance and durability. The superior quality of our Prototype PCB Assembly is further enhanced with a maximum copper thickness of 5oz and a wide variety of materials like FR4, Aluminum, Rogers, etc. We guarantee that our Prototype PCB Assembly is highly reliable and will be able to meet the most demanding industrial control applications. Our Prototype PCB Assembly is sure to become an integral part of your industrial control systems and provide you with the best performance and durability.

Features:

  • Product Name: Prototype PCB Assembly
  • Double Side PCB Assembly, Electronic Circuit Board Assembly, Double Sided PCB Assembly
  • Max. Aspect Ratio: 8:1
  • Material: FR4, Aluminum, Rogers, Etc.
  • Max. Board Size: 600mm*1200mm
  • Number of Layers: 2-20

Technical Parameters:

PropertySpecification
Min. Line Spacing0.075mm
Min. Line Width0.075mm
Copper Thickness1/2oz-5oz
Max. Copper Thickness5oz
Max. Panel Size600mm*1200mm
Max. Aspect Ratio8:1
MaterialFR4, Aluminum, Rogers, Etc.
Board Thickness0.2-4.0mm
Min. Hole Size0.2mm
Max. Solder Mask Dam0.1mm
Special FeaturesDouble Sided PCB Assembly, Grow Light PCB Assembly, Industrial Control PCB Assembly

Applications:

Prototype PCB Assembly is a reliable and cost-effective solution for a wide variety of industrial applications. It is widely used in industrial control, grow light, and double-side PCB assembly applications, due to its superior performance and cost savings. It can be used for single-layer or multi-layer PCBs with a maximum layer count of 20, maximum board size of 600mm*1200mm, and a maximum panel size of 600mm*1200mm. The board thickness can range from 0.2mm to 4.0mm, making it perfect for a variety of applications. Prototype PCB Assembly is ideal for any industrial application, providing superior performance and cost savings.

Customization:

Prototype PCB Assembly: Customized Service

Our Prototype PCB Assembly service provides a reliable and efficient way to build custom electronic circuit boards for all your needs. We use the highest quality materials, such as FR4, aluminum, Rogers, etc., and our double-sided PCB assembly construction provides superior performance. Our experienced technicians ensure that your boards comply with the highest standards, providing maximum aspect ratio of 8:1, maximum solder mask dam of 0.1mm, minimum line width of 0.075mm, and minimum line spacing of 0.075mm. Our Prototype PCB Assembly service is the perfect choice for any project that requires double sided PCB assembly.

FAQ:

Prototype PCB Assembly
Q1: What is Prototype PCB Assembly?A1: Prototype PCB Assembly is a service that provides customers with a cost-effective and timely solution for the fabrication of prototype printed circuit boards (PCBs).
Q2: What are the benefits of using a Prototype PCB Assembly Service?A2: The benefits of using a Prototype PCB Assembly Service include improved quality control, reduced time to market, and cost savings.
Q3: What types of components are used in Prototype PCB Assembly?A3: Prototype PCB Assembly typically utilizes standard components such as resistors, capacitors, transistors, and integrated circuits.
Q4: What types of materials are used in Prototype PCB Assembly?A4: Prototype PCB Assembly typically utilizes materials such as copper, dielectric materials, and solder.
Q5: What is the typical turnaround time for Prototype PCB Assembly?A5: The typical turnaround time for Prototype PCB Assembly is usually one to two weeks, depending on the complexity of the project.
